DB112 Pulse Valve Diaphragm Repair Kit with NBR Rubber for Dust Collector

Name: DB112 Pulse Valve Diaphragm Repair Kit with NBR Rubber for Dust Collector
Brand: HONGUM
Price: 20 USD

Brand Name : HONGUM

Model Number : DB112

Place of Origin : China

MOQ : 10

Price : 20

Payment Terms : ,T/T

Supply Ability : 10000PCS/Month

Delivery Time : 3 work days

Packaging Details : Carton

Material : NBR+Stainless Steel

Package : Carton, Wooden Case, Etc.

Advantage : Tear resistance, aging resistance

Working Pressure : 0.15~0.85MPa

Colour : Black

Port Size : 3/4''

Usage Scenario : Precipitator equipment

Fluid : Air

Working Temperature : -20℃~+100℃

HS Code : 8481901000

Contact Now

Product Description

Pulse valve diaphragm is one of the core components of pulse valve, which plays the role of air blowing circuit switch in the dust removal system of pulse bag filter. This kind of diaphragm is usually made of rubber cloth or pure rubber, has the characteristics of double-sided pressure bearing, can ensure normal working and long service life in extremely harsh working environment. The working temperature range and pressure range of the diaphragm depend on its glue, fabric and structure, generally working at -20~80ºC, 0.3~0.8MPa, while the fluorine rubber and silicone rubber diaphragm can work at a wider temperature range of -40~220ºC.

Main Dimension

Product Features

1.High strength tear resistance to ensure the flexibility of the diaphragm;

2.Good adhesion and tensile strength to ensure the sealing of the diaphragm;

3.Good corrosion resistance, can be used normally in compressed air containing oil, water and other components.

Detailed Photos

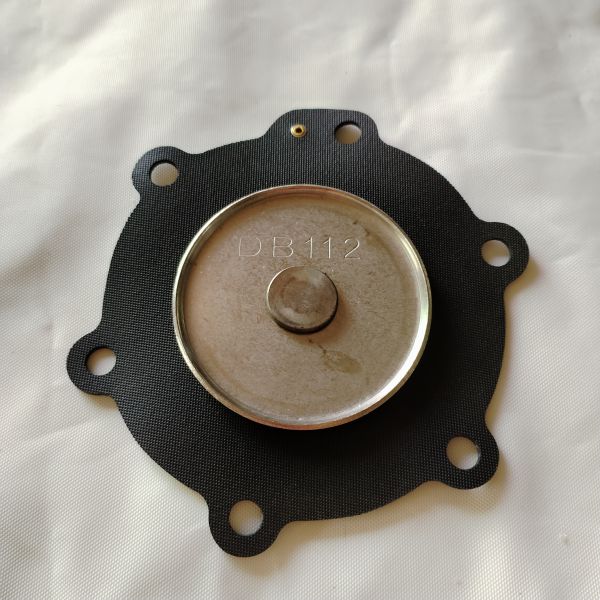

DB112 Pulse Valve Diaphragm Repair Kit with NBR Rubber for Dust Collector
